Front: 101.2kg
Rear: 118.8kg
Dimensions
Overall Length
Overall Width
Overall Height
Mass without driver
3087m
1354mm
1122mm
Out of gallery
Suspension
Suspension Type
4 way adjustible Ohlins TTX25 MkII dampers
Suspension design travel
25mm
Tyre
18.0x7.5-10 R25B Hoosier
Wheel
8" wide, 3 piece spun aluminium wheels
Powertrain and Performance
Motor
Emrax 228
Accumulator Voltage
592V
Maximum Motor Power
109kW
Maximum Motor Torque
240Nm
Chassis
Frame Construction
Composite Monocoque
Material
Gurit Carbon Fibre with 1/4" honeycomb core
Torsional Stiffness
2700N-m/deg
Aerodynamic

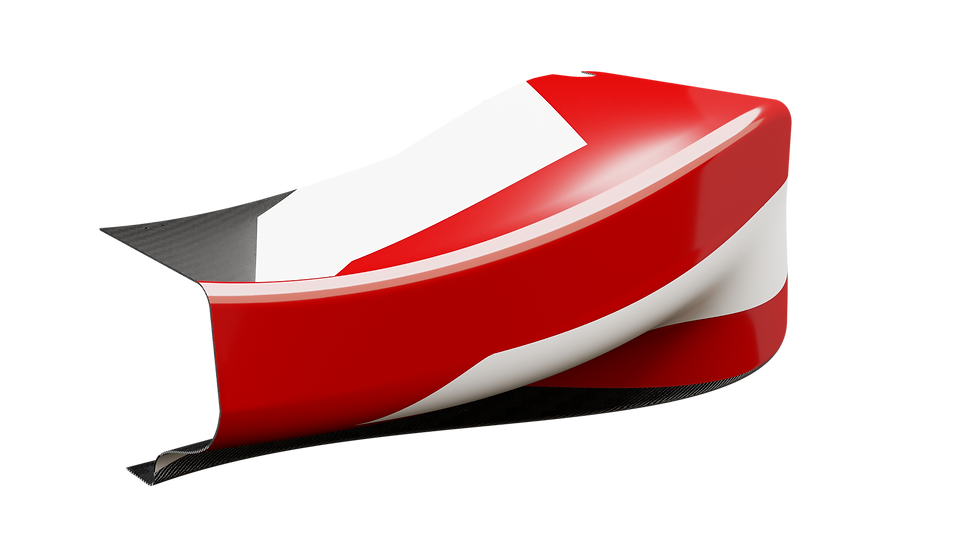

Configuration
Nosecone and
Sidepods
CI
0.134
CD
0.905
SPONSORS
Weight
220 kg
Accumulator
7.6kWh
Powertrain
109 kW
